36W 4ft LED Surface Mounted Linear Fitting IP20 120cm
At Rosy Glow Lighting, our aim is to ensure our customers are fully satisfied with their purchases. In the unlikely event that you are not pleased with your order, please read through our refund and return policy Click here.
UNITED KINGDOM
Zone 1
(England, Wales, and Scotland) : SAME DAY DISPATCH*: Order between Monday to Friday before noon and get your order dispatched the same day. Generally, your order will be delivered in one to two business days after dispatched.
Orders placed after Friday noon and before Monday noon will be delivered Tuesday.
* Orders over £40 are free. Orders between (£0-£39.99) are flat £5 shipping fee.
Zone 2
(Northern Ireland, Highlands, Islands) : STANDARD FREE DELIVERY** : 2-4 business days.
** Orders over £40 are free. Orders between (£0-£39.99) are flat £5 shipping fee.
Orders placed on a weekday (before noon.) will be dispatched the same day.
Orders placed on weekends(after noon) and bank holidays will be dispatched the following working day.
Note: In case of returns for orders which cart value more than £40, Shipping fee might be deducted if new cart value is less than £40.
Solution partners: DPD, Royal Mail, DX, FedEx, Parcel Force
Product Overview

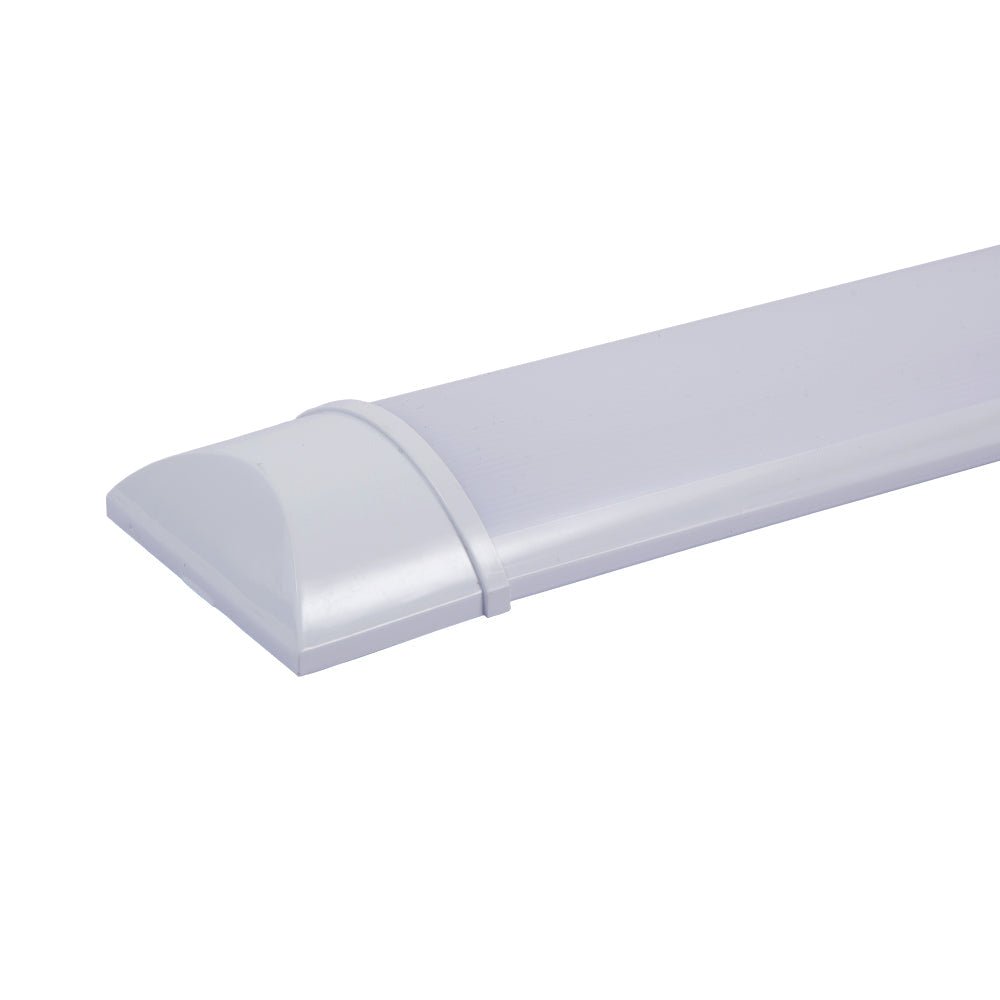

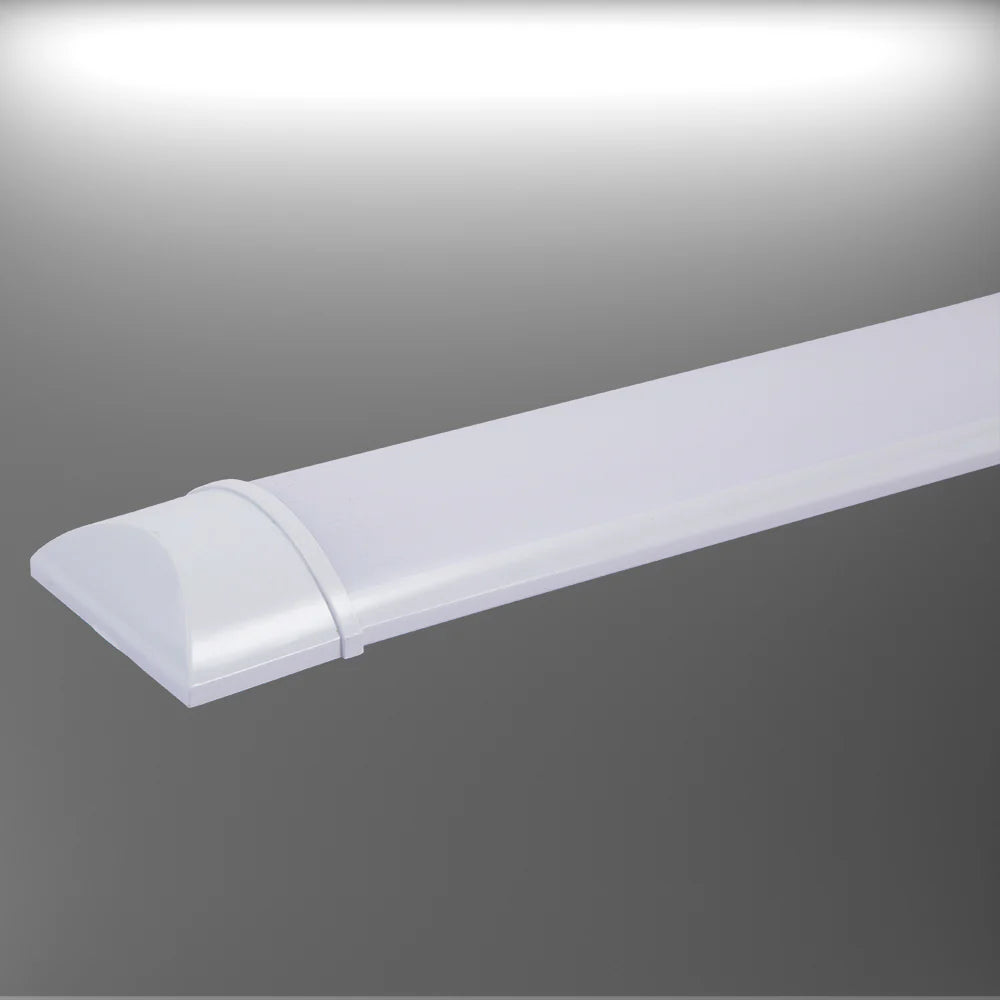

This 4ft LED surface-mounted linear fitting is a simple and efficient way to brighten up any space. Its slim, minimalist design seamlessly blends into most settings. You can also choose between cool white and cool daylight, depending on your preference. It’s suitable for surface mounting and suspension.
Key details at a glance:

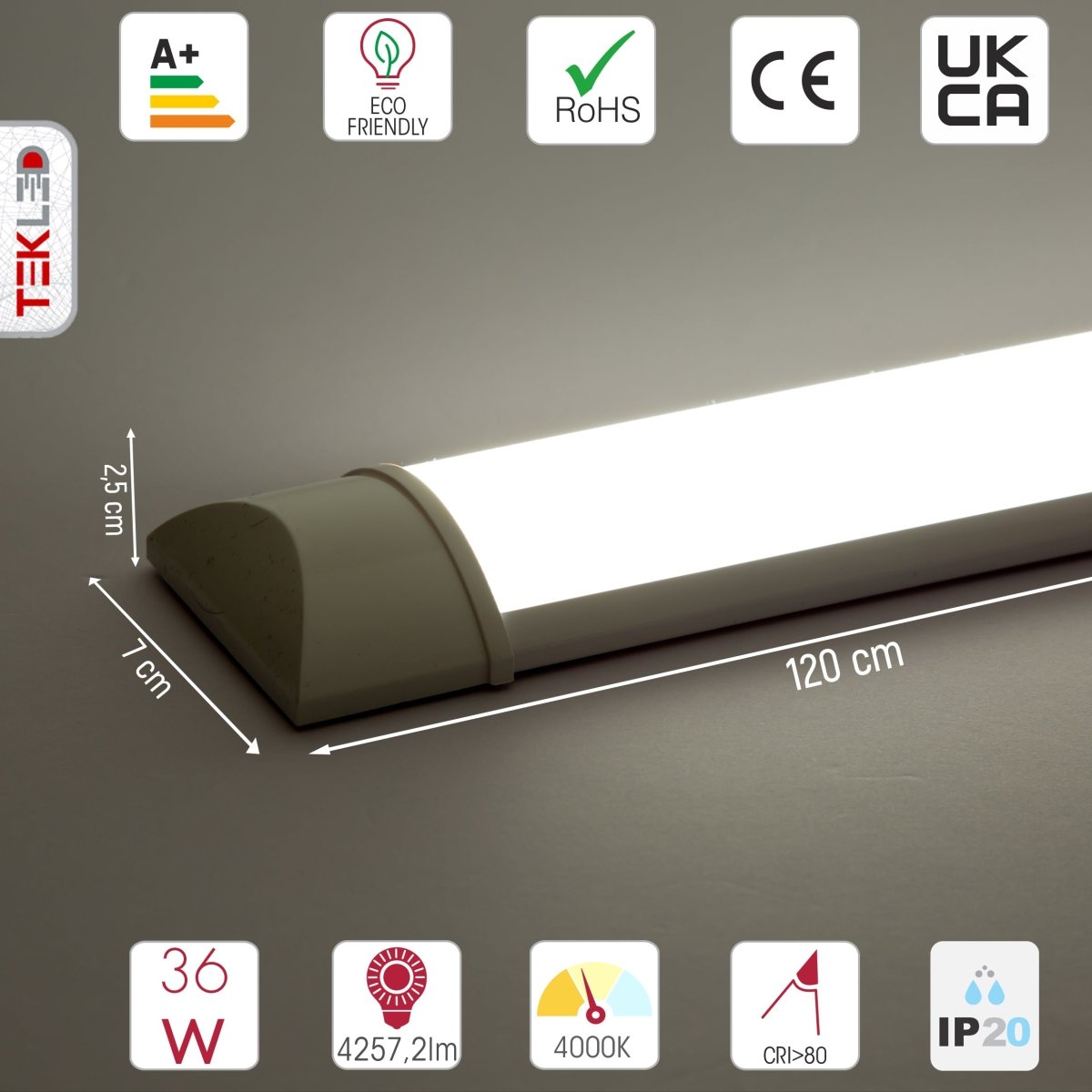

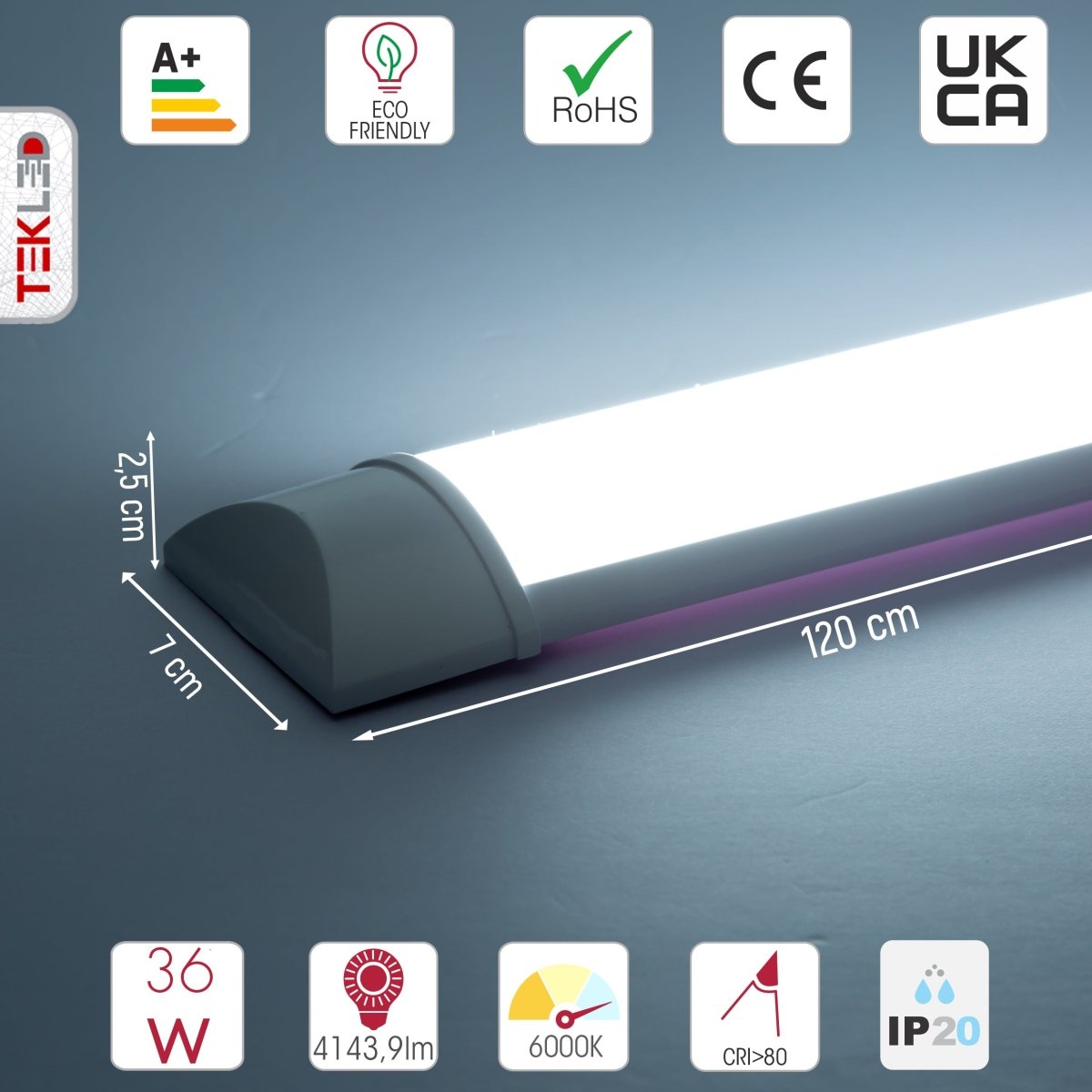

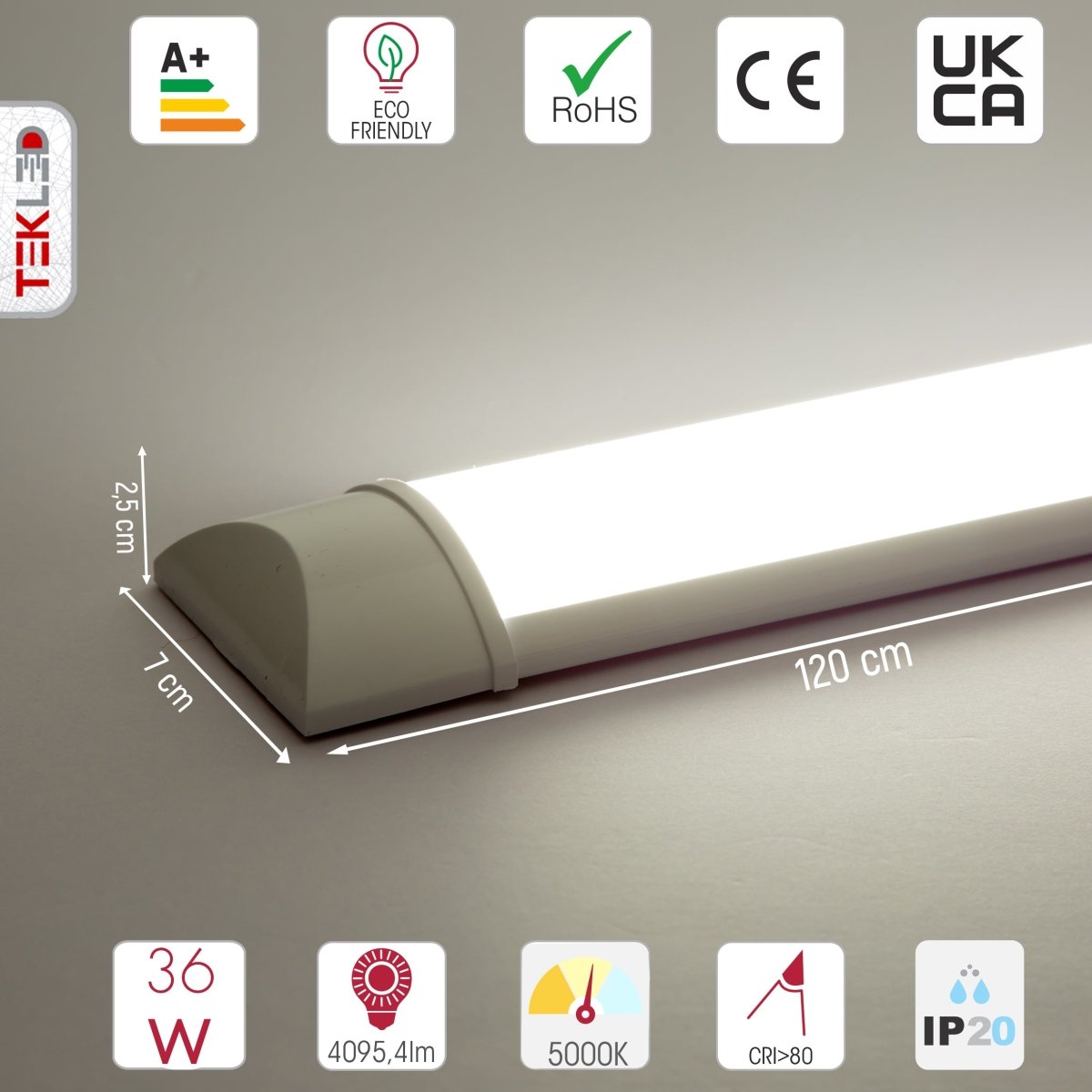

- Dimensions: 1200mm (L) x 78mm (W) x 25mm (H)
- Wattage: 36W
- Lumens: 4260lm
- Colour temperature: 4000K, 5000K, or 6000K
- IP rating: IP20

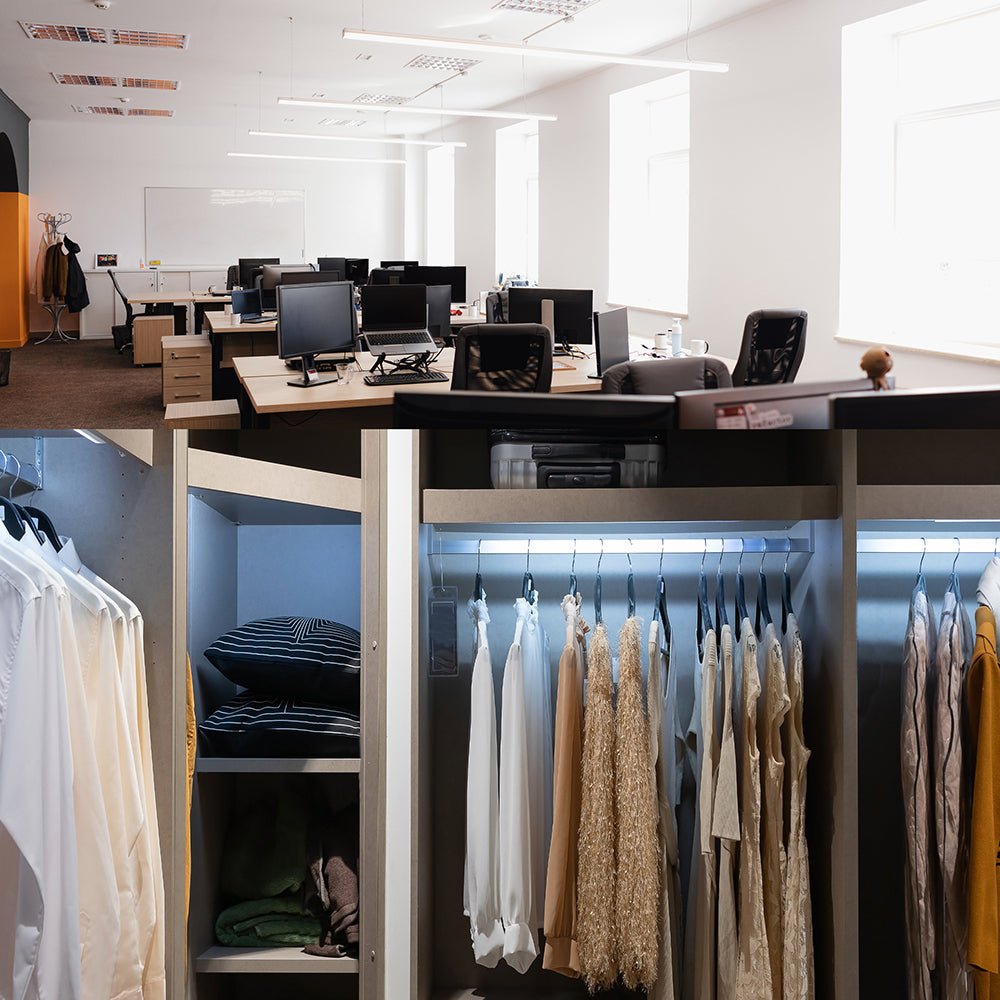

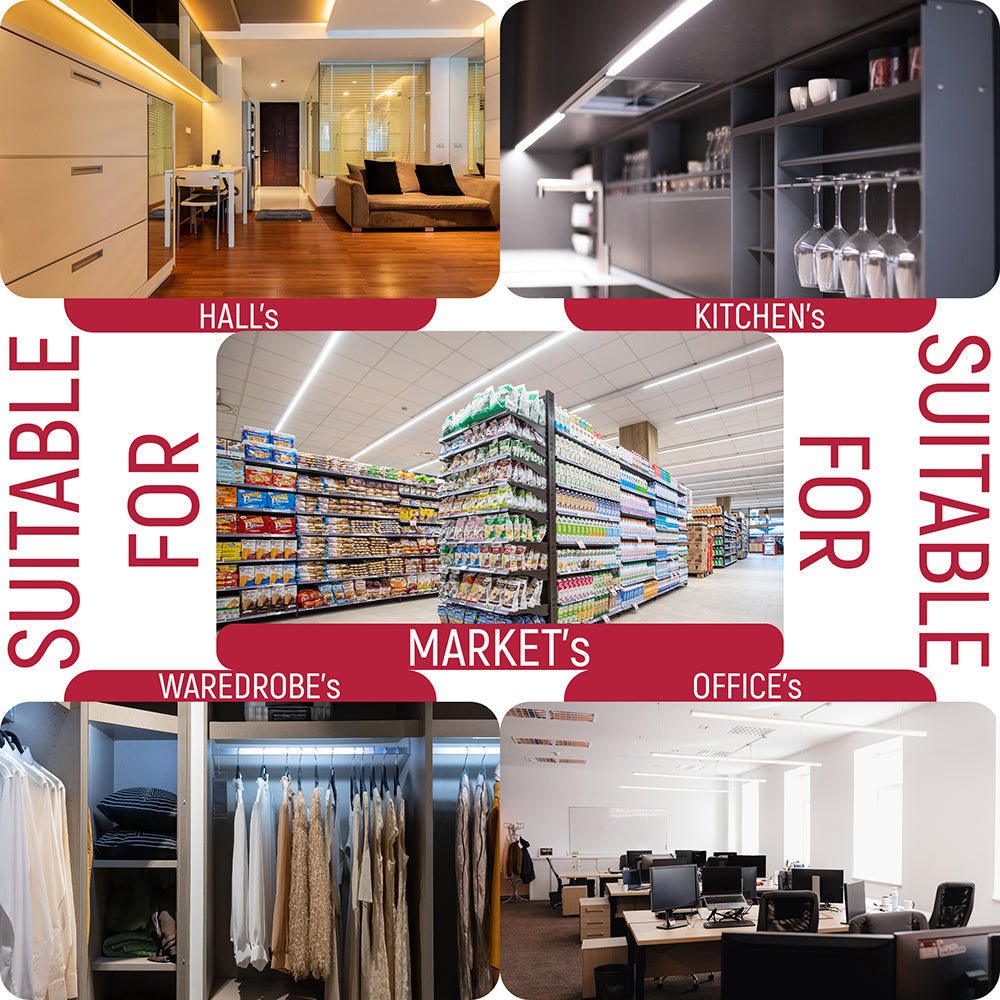

Perfect for:
- Garages: Provides bright, even illumination
- Workshops: Makes it easier to see details
- Utility rooms: Brightens up often-overlooked spaces

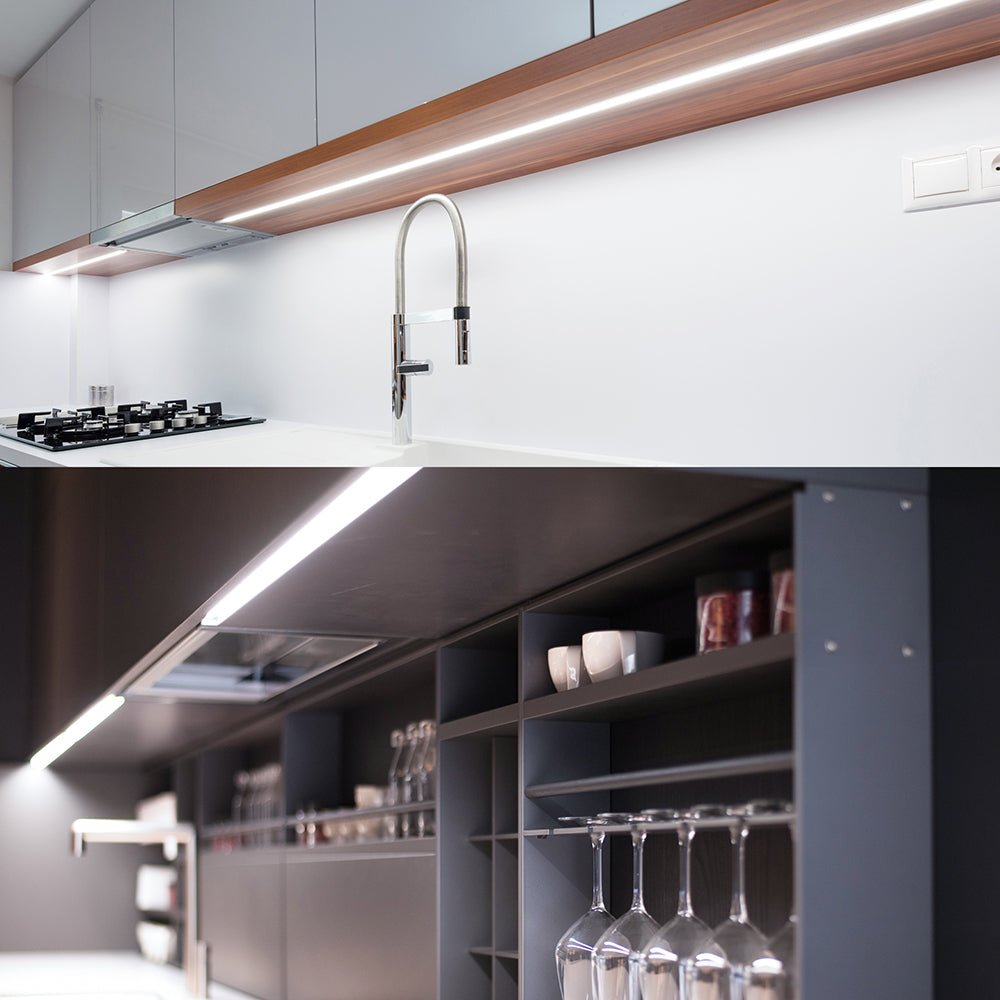

- Kitchens: Offers a modern and practical lighting solution
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | LED Surface Mounted Linear Fitting 36W IP20 120cm 4ft Cool White or Cool Daylight |
| Model | Slim Type Batten, Waterproof Batten, Built-in LED batten |
| Product Code | 116-03403 | 116-03404 | 116-03401 |
| Power | 33W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | SMD 2835 LED |
| Led Quantity | 4P24S*2 |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 4260lm | 4100lm | 4150lm |
| Luminous Efficacy | 127lm/W | 123lm/W |
| Lux | 78Lux @2m |
| CRI | CRI>80 |
| CCT (Kelvin) Light Colour | 4000K Cool White | 5000K Cool White | 6500K Cool Daylight |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Surface Mount, Suspended |
| Product Length | 1200mm |
| Power Cord Length | 150mm |
| Made Of Materials | Polycarbonate |
| Product Colour | White |

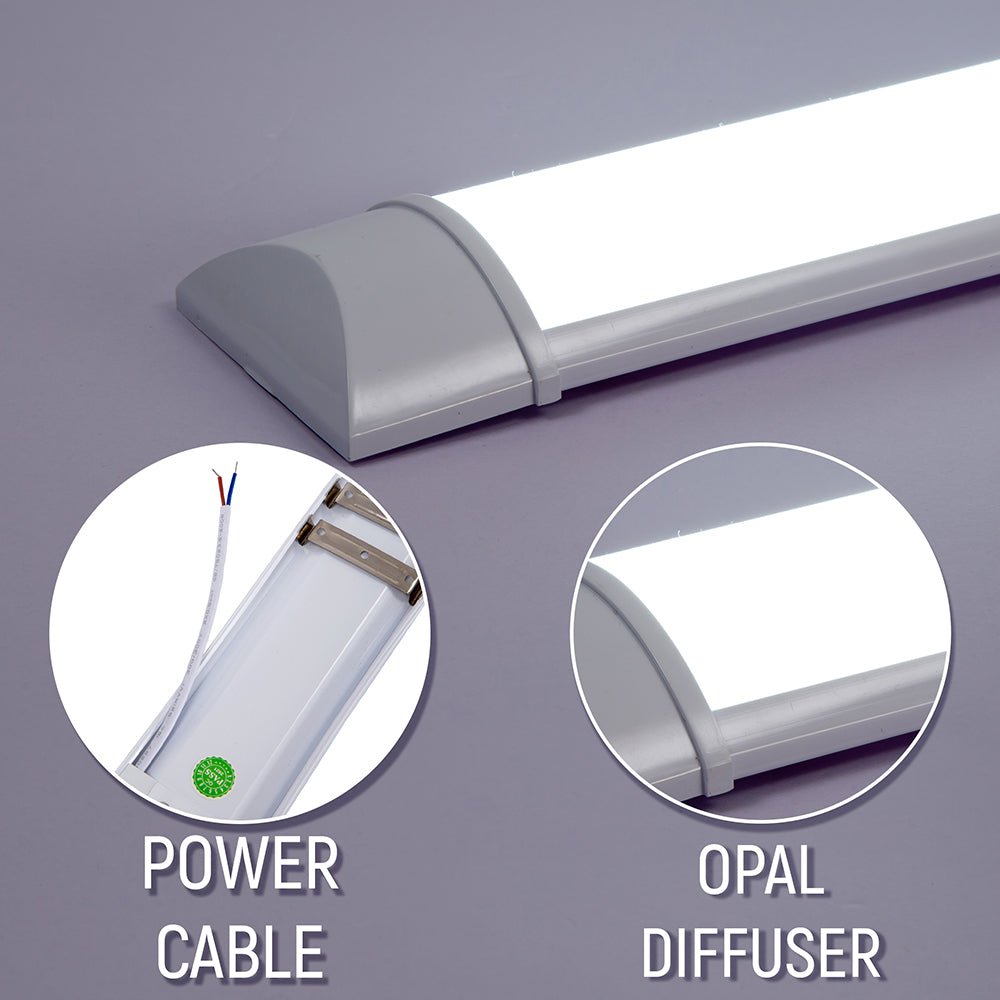

| Diffuser Material | PC (Polycarbonate) |
| Diffuser Type | Opal |
| Driver Type | Constant Current Driver |
| Driver Power | 36W |
| Driver Input Voltage | 85-265 V AC 50/60Hz |
| Driver Output Current | 300mA |
| Surge Protection Level | 2kV |
| Power Factor | pf>0.5 |
| Control | On/Off |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | E | E |
| Energy Rating Range | A-G |
| Warranty | 2 year |
| Life Span | 30000h |
| Net Weight | 0.25kg |
| Box Dimension (LxWxH) | 123.5x7.8x2.5cm |

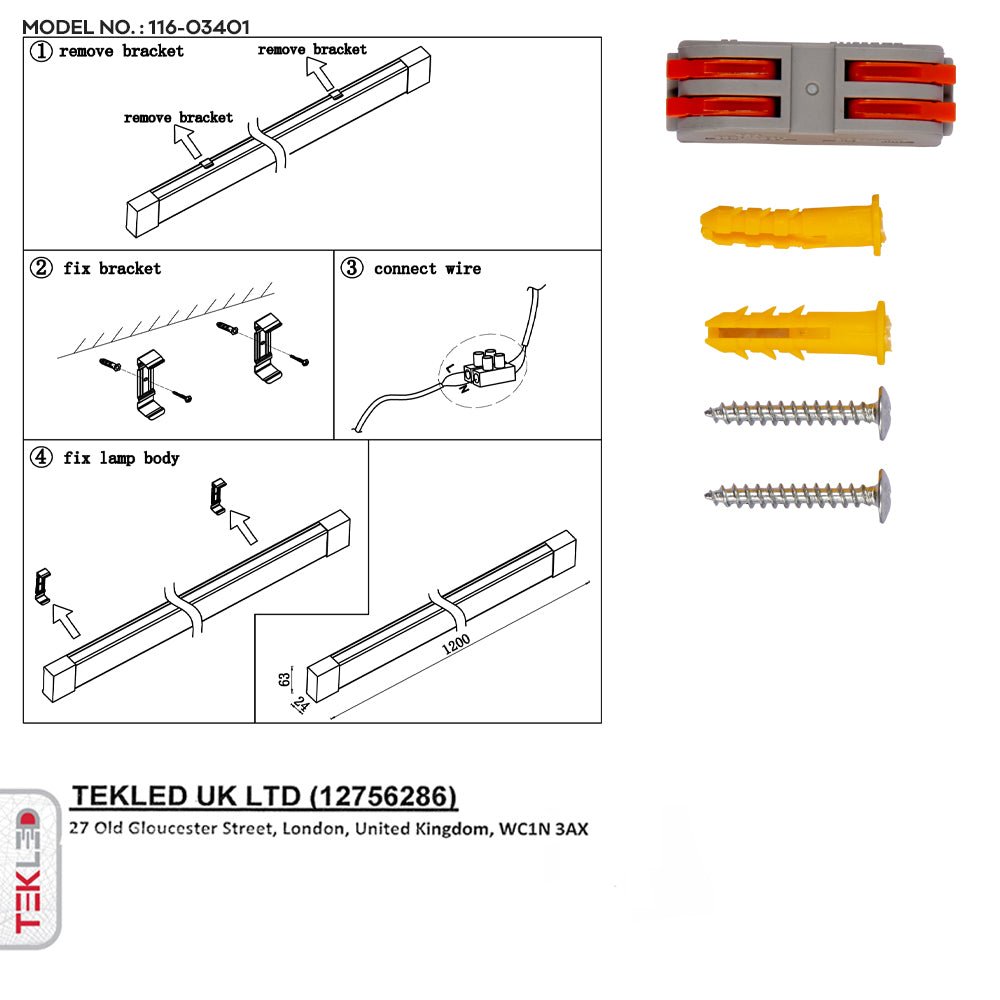

| Box Content | 1 pc Light Fixture, User Manual, 1 pc Fittings, 1 pc Terminal |
| Certifications | EMC |
