Product Overview
This KGP Constant Voltage LED Driver is perfect for powering your LED strip lights and modules. It offers a reliable and efficient 24V DC output with a maximum power of 150W. While non-dimmable itself, it's compatible with 24V dimmer controllers, giving you flexibility in controlling the brightness of your LEDs.
Key details at a glance:

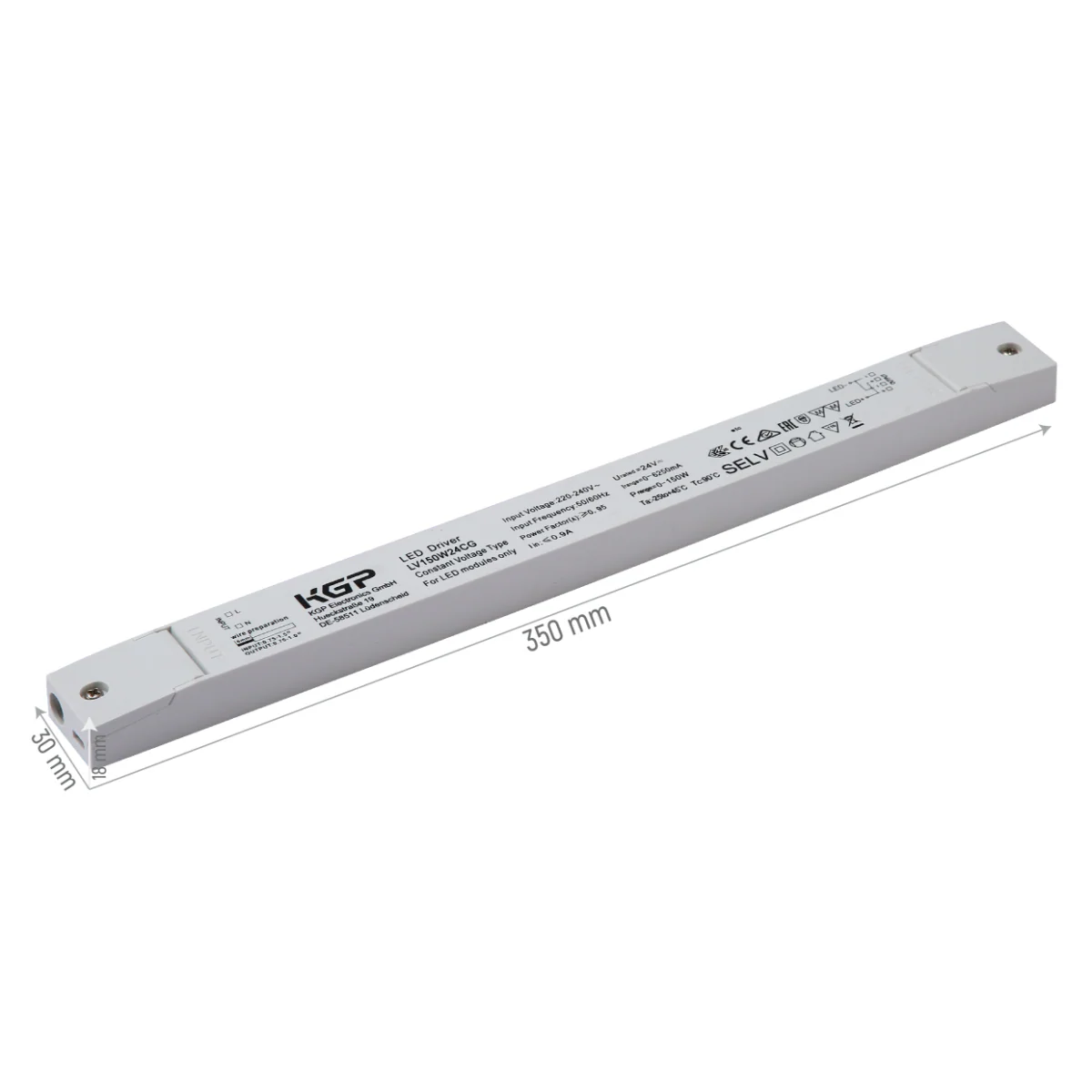

- Dimensions: 350mm (L) x 30mm (W) x 18mm (H)
- Output Voltage: 24V DC
- Output Current: 0-6250mA
- Power: 150W
- Dimmable: Use with a 24V dimmer controller
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | KGP Constant Voltage LED Driver 24V 150W 10A for LED Strips-Modules |
| Product Code | 890-15956 LV150W24CG |
| Power | 150W |
| Type | Constant Voltage 24V DC |
| Voltage | 220/240V AC 50/60Hz |
| Output Voltage | 24V DC |
| Output Current | 0-6250mA |
| Power Range | 0-150W |
| Led Type | for LED Modules and LED Strip lights |
| Output | 2 output |
| Protection Class | Class II |
| Dimmability | Non-Dimmable but can be used with 24V dimmer controllers for dimming the LEDs |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Product Dimensions (LxWxH) (DxH) | 350x30x18mm |
| Made Of Materials | Plastic Box |
| Product Colour | White |
| Input Cable Size | 0.75 - 1.5 mm |
| Output Cable Size | 0.75 - 1 mm |
| Power Factor | pf>0.95 |
| Operating Temperature (C) | -25/+45C |
| Temperature (tc) | 90C |
| Warranty | 3 year |
| Life Span | 50000h |
| Box Dimension (LxWxH) | xxmm |
| Box Content | 1 Piece of driver |
| Certifications | UKCA, CE, ENEC, EAC, SELV |
