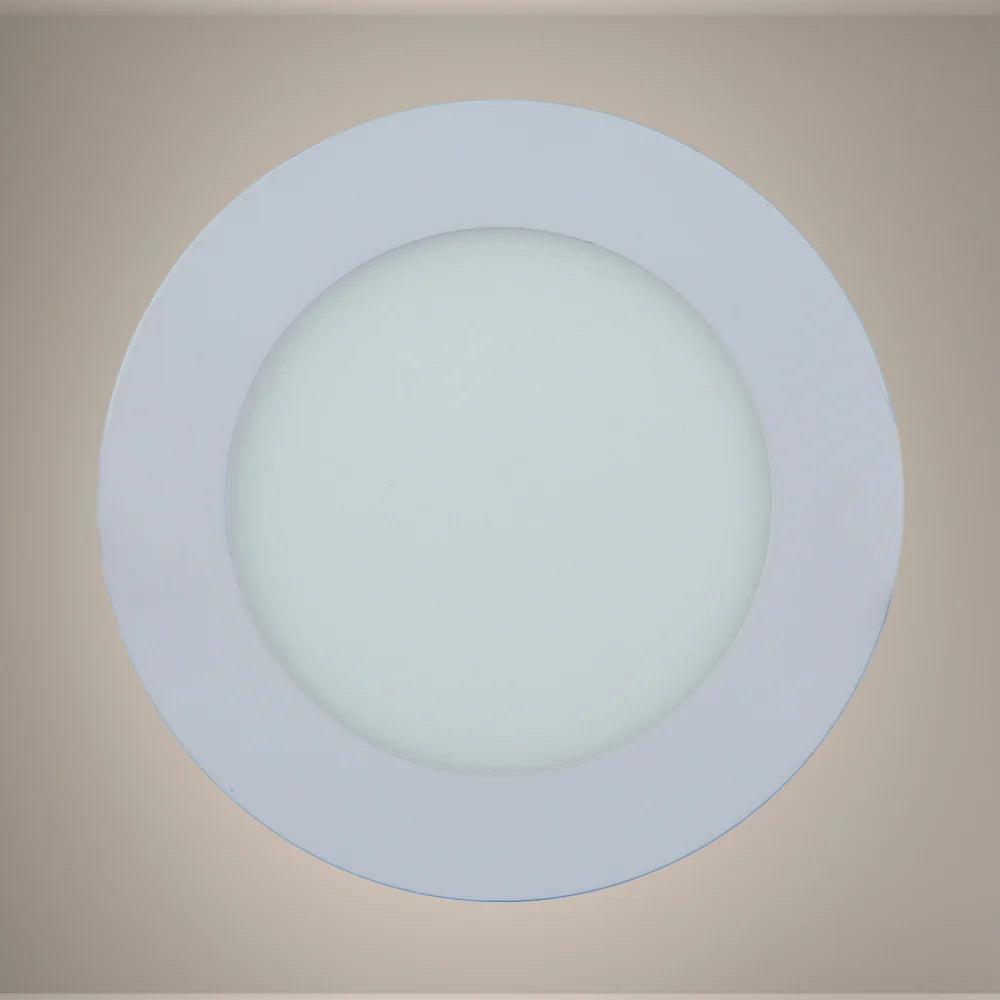

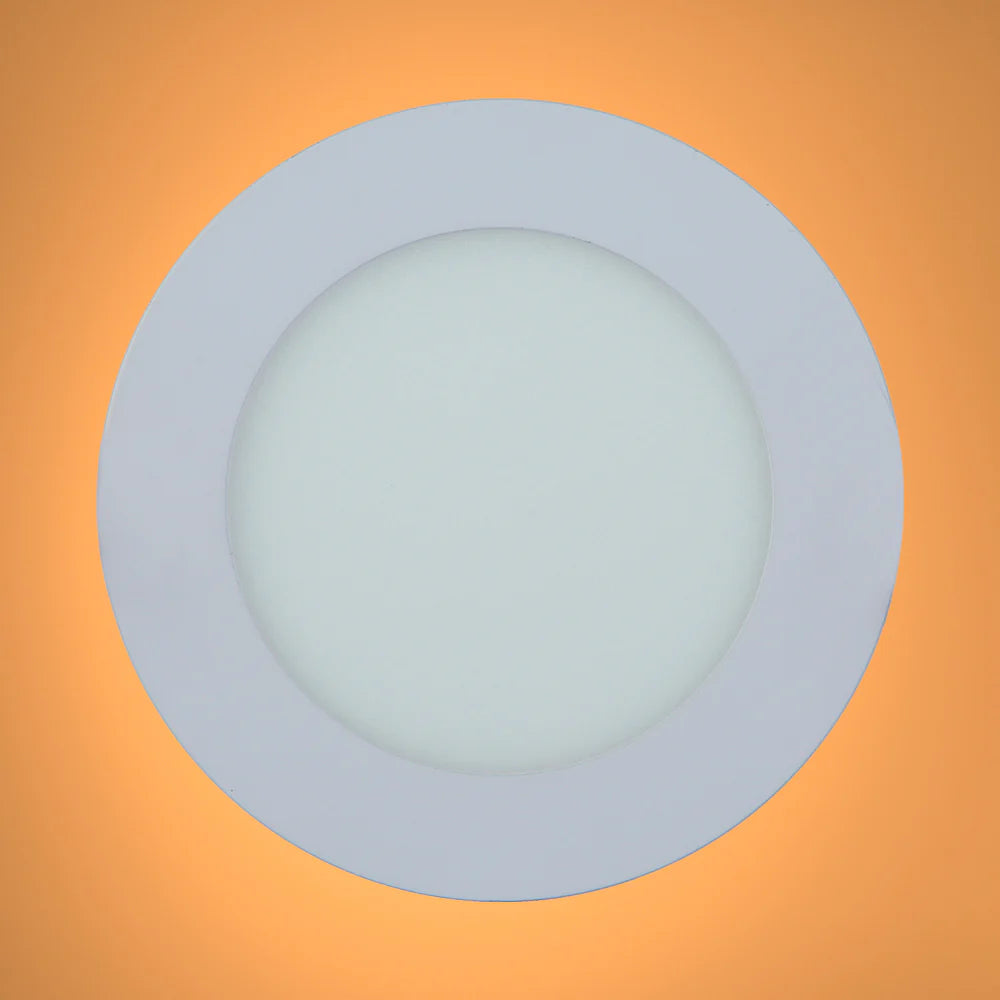

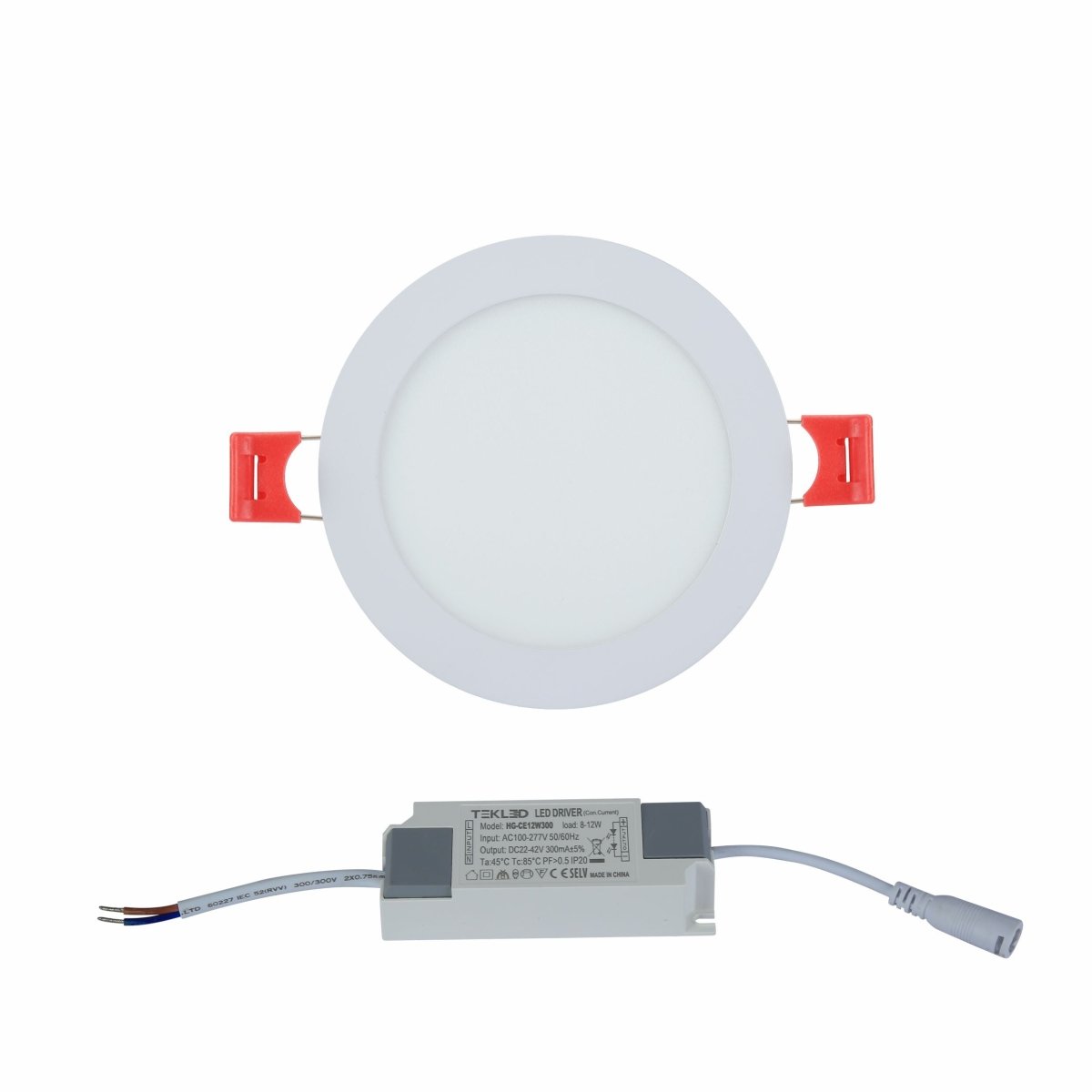

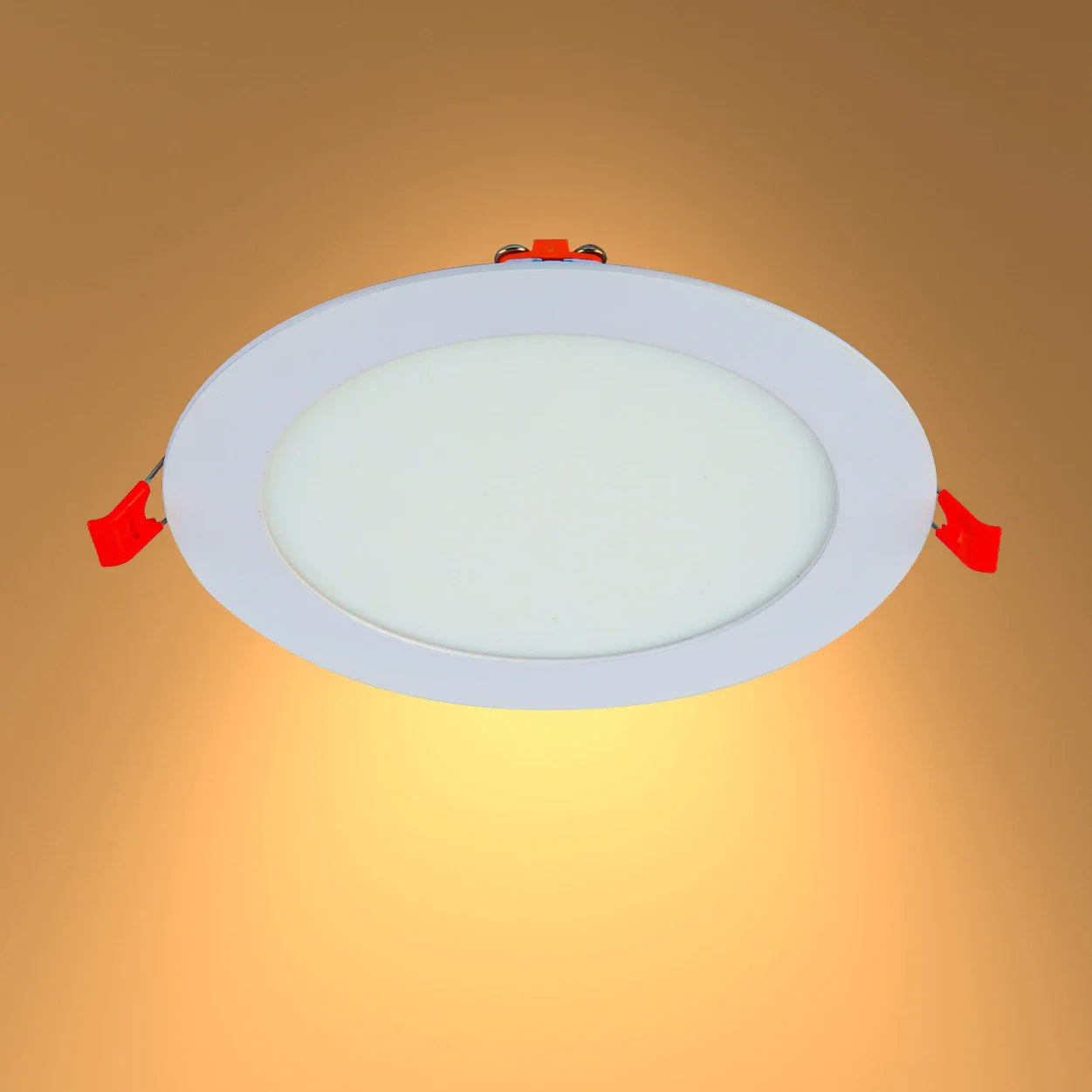

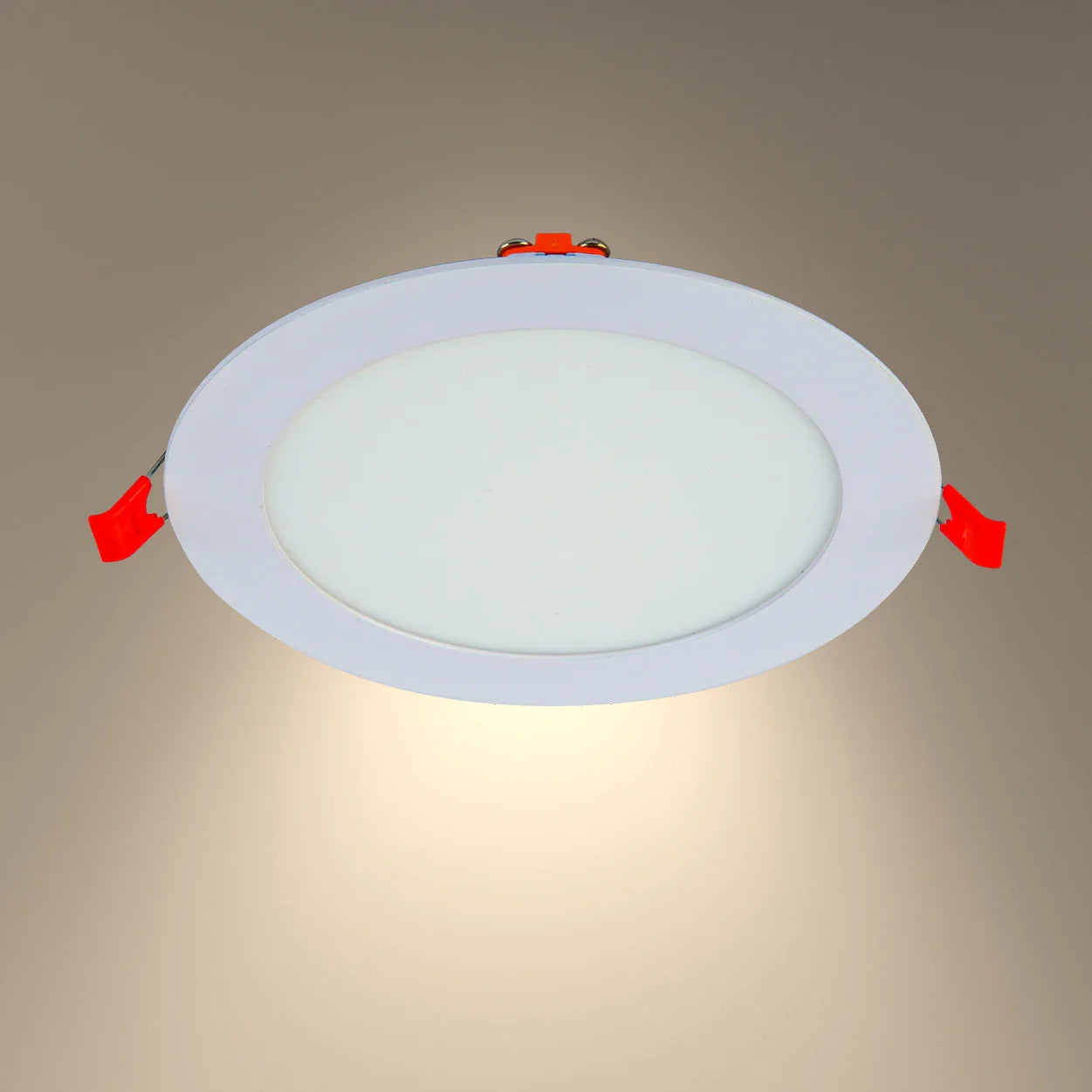

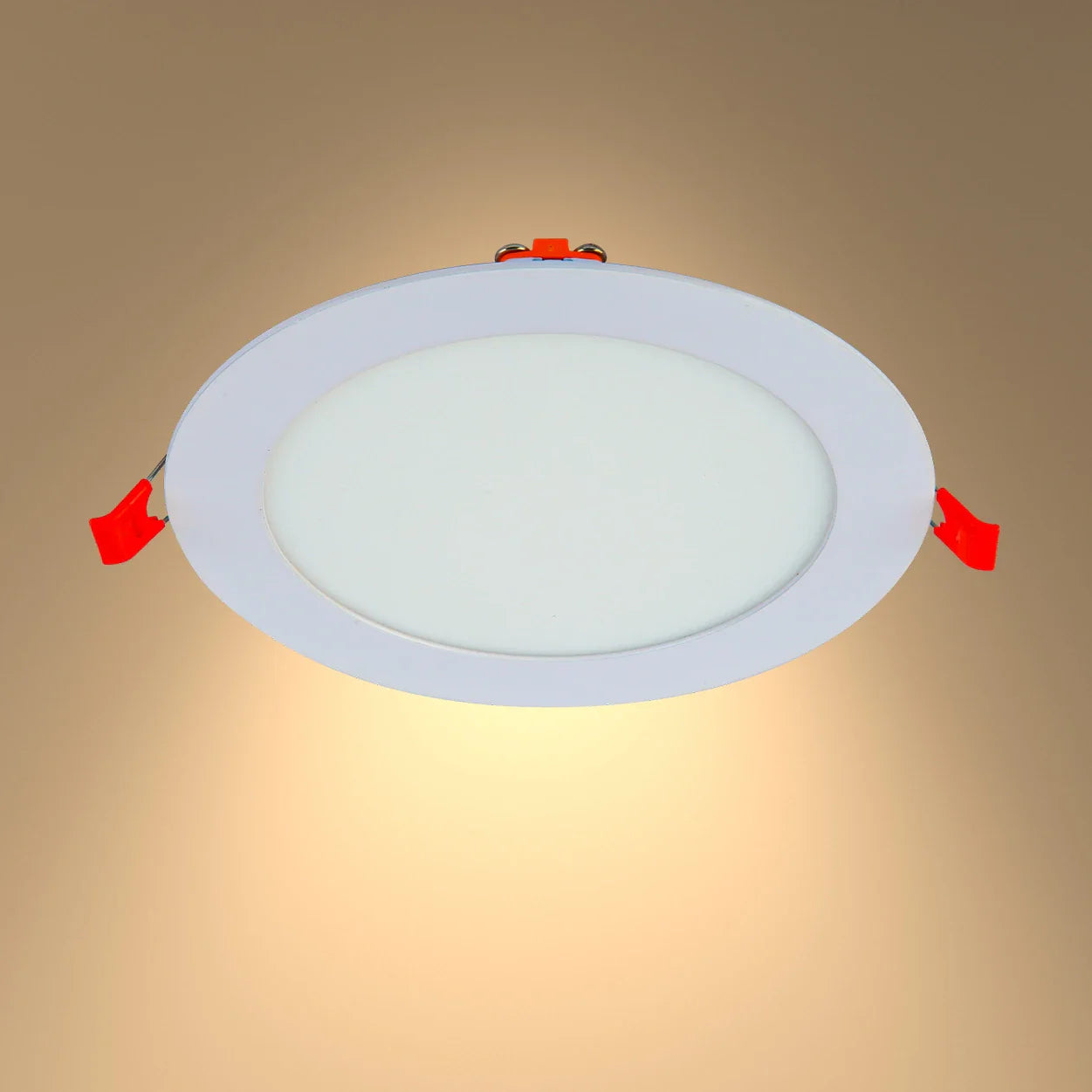

12W Downlight LED Round Slim Panel Light D170mm
At Rosy Glow Lighting, our aim is to ensure our customers are fully satisfied with their purchases. In the unlikely event that you are not pleased with your order, please read through our refund and return policy Click here.
UNITED KINGDOM
Zone 1
(England, Wales, and Scotland) : SAME DAY DISPATCH*: Order between Monday to Friday before noon and get your order dispatched the same day. Generally, your order will be delivered in one to two business days after dispatched.
Orders placed after Friday noon and before Monday noon will be delivered Tuesday.
* Orders over £40 are free. Orders between (£0-£39.99) are flat £5 shipping fee.
Zone 2
(Northern Ireland, Highlands, Islands) : STANDARD FREE DELIVERY** : 2-4 business days.
** Orders over £40 are free. Orders between (£0-£39.99) are flat £5 shipping fee.
Orders placed on a weekday (before noon.) will be dispatched the same day.
Orders placed on weekends(after noon) and bank holidays will be dispatched the following working day.
Note: In case of returns for orders which cart value more than £40, Shipping fee might be deducted if new cart value is less than £40.
Solution partners: DPD, Royal Mail, DX, FedEx, Parcel Force
Product Overview

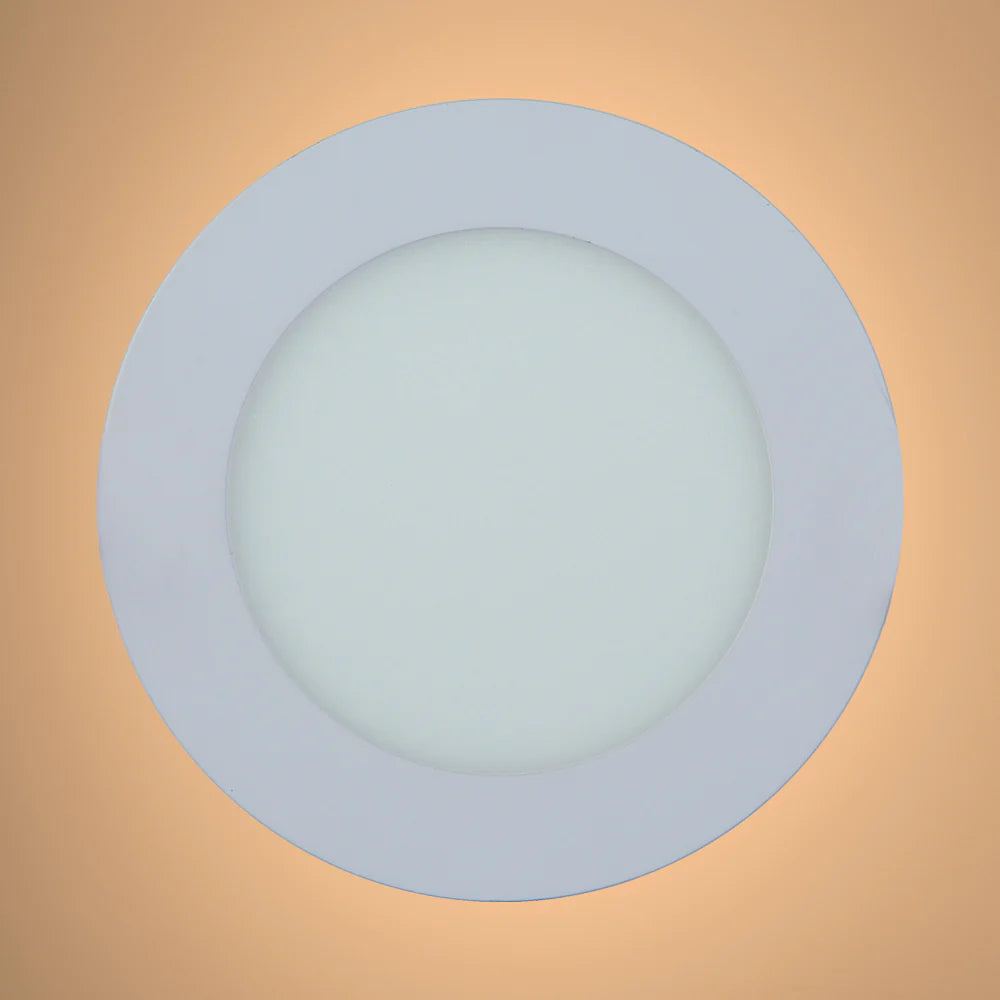

This slim, round downlight is perfect for adding a touch of elegance to any room. Its edge-lit design provides a soft, even glow, while the flicker-free operation ensures comfortable lighting for your eyes. Choose from three colour temperatures - warm white, cool white, or cool daylight - to create the perfect ambience.
Key details at a glance:

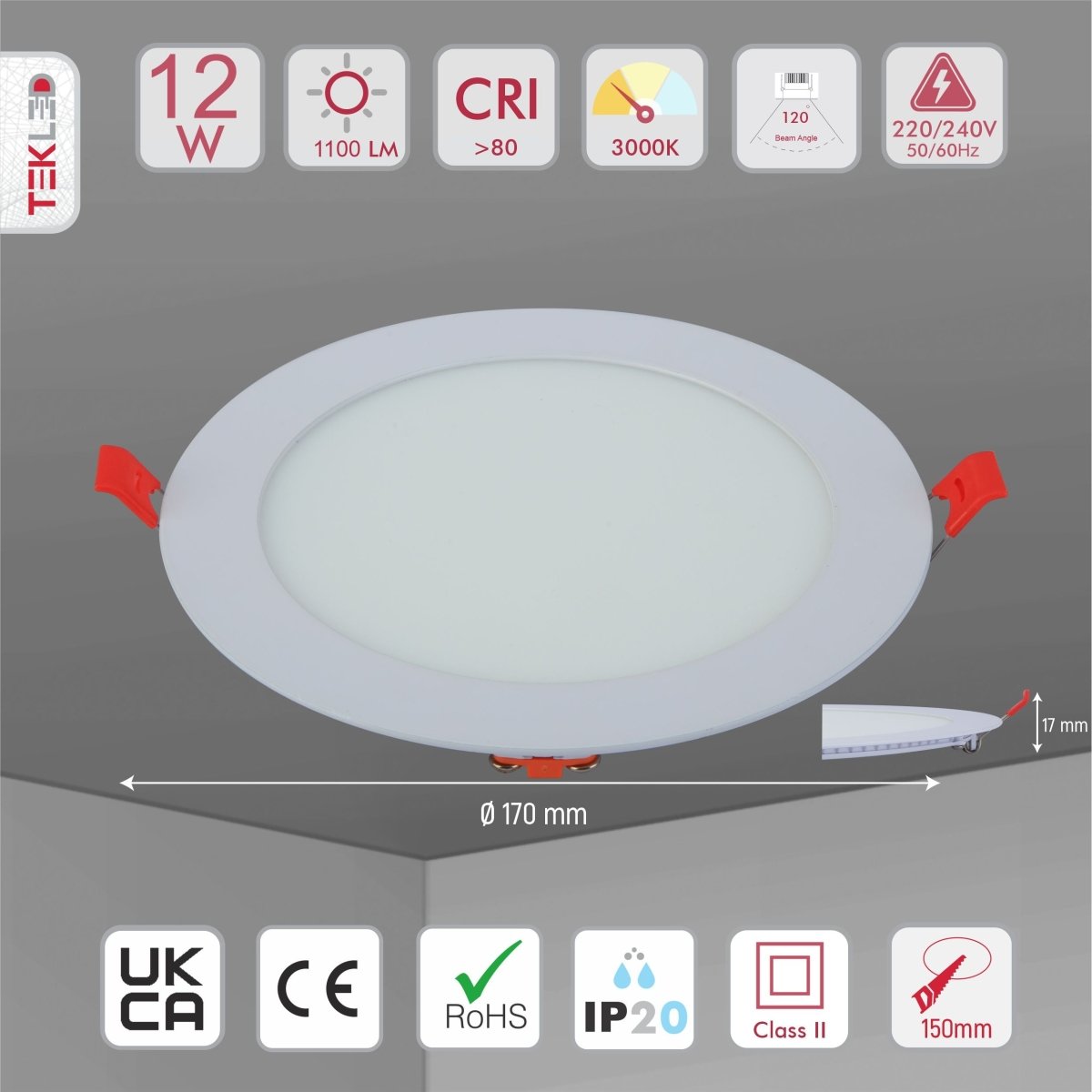

- Dimensions: 170mm (D) x 17mm (H)
- Cutout size: 150mm (D)
- Compatible bulbs: Integrated LED - no need for additional bulbs
- Power: 12W
- Dimmable: No
Perfect for:

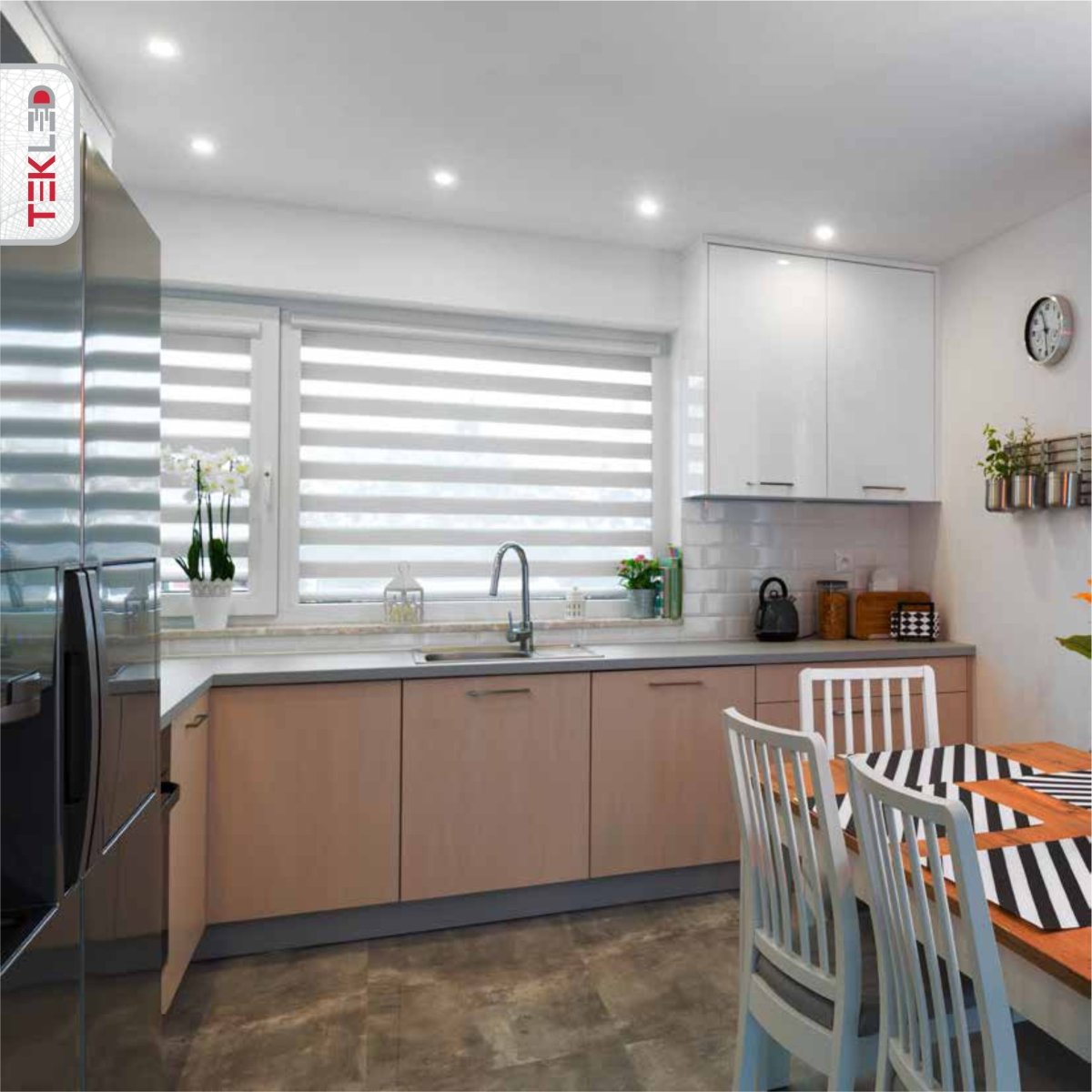

- Kitchens: Task lighting for food prep areas
- Bathrooms: Creates a relaxing spa-like atmosphere

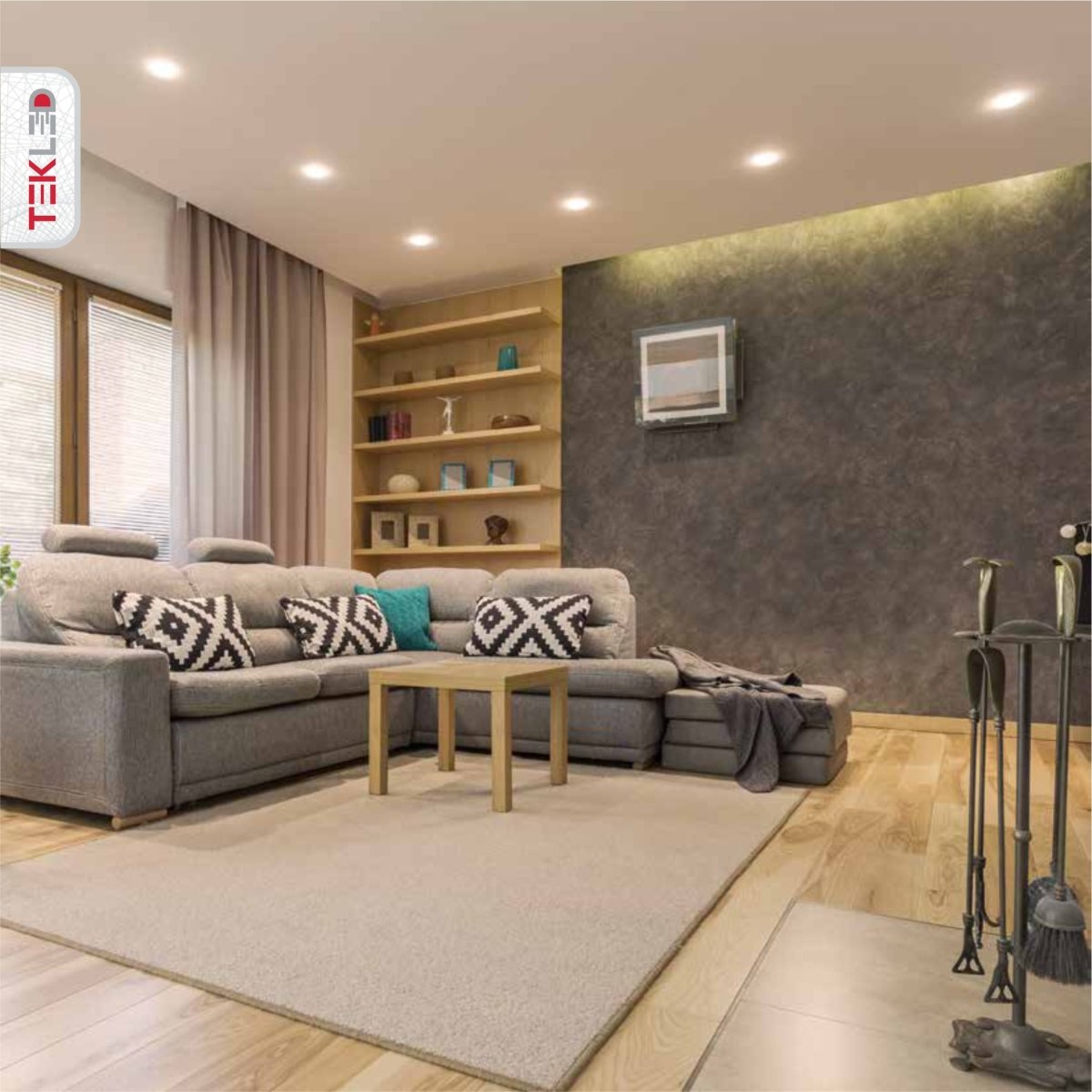

- Living rooms: Adds a touch of style and sophistication

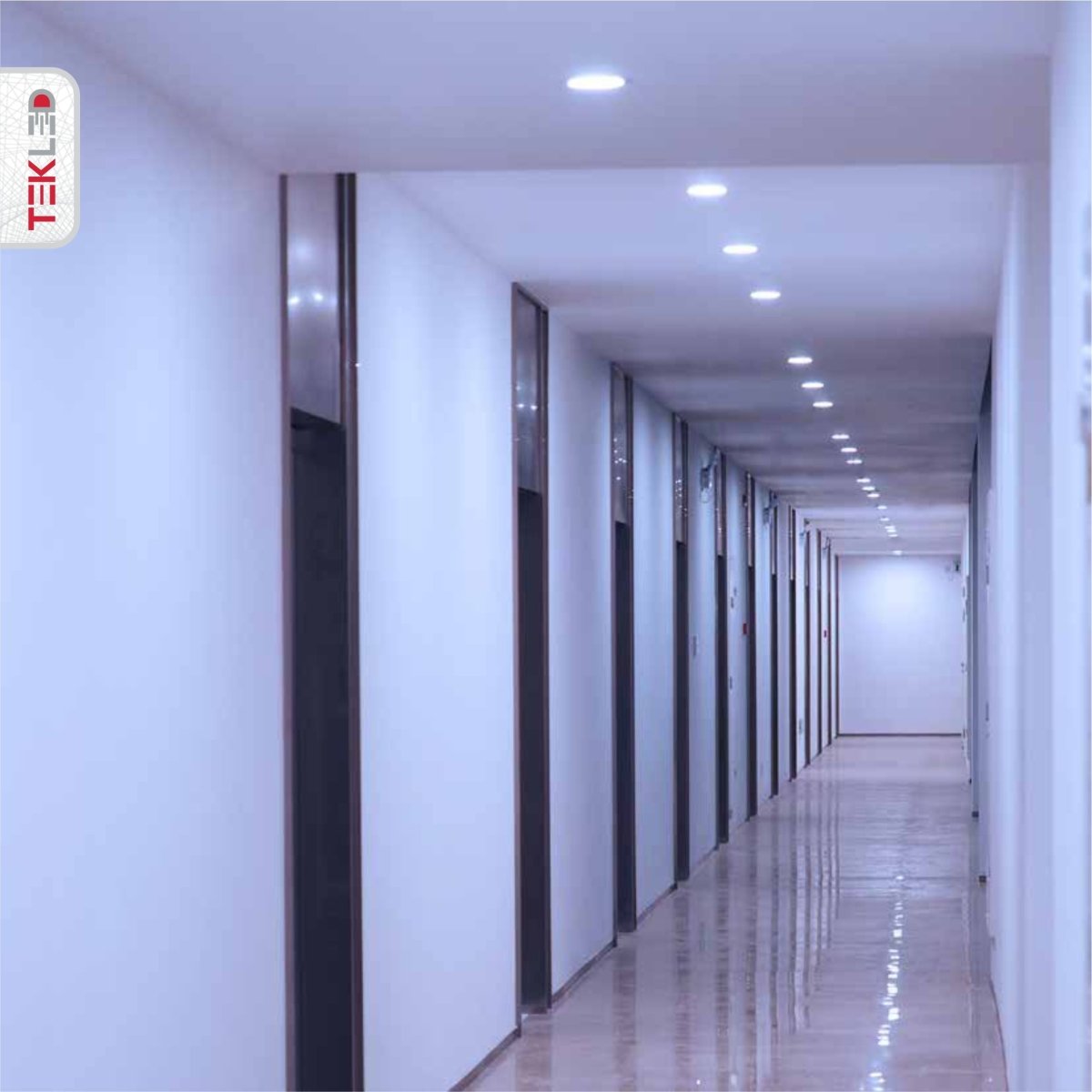

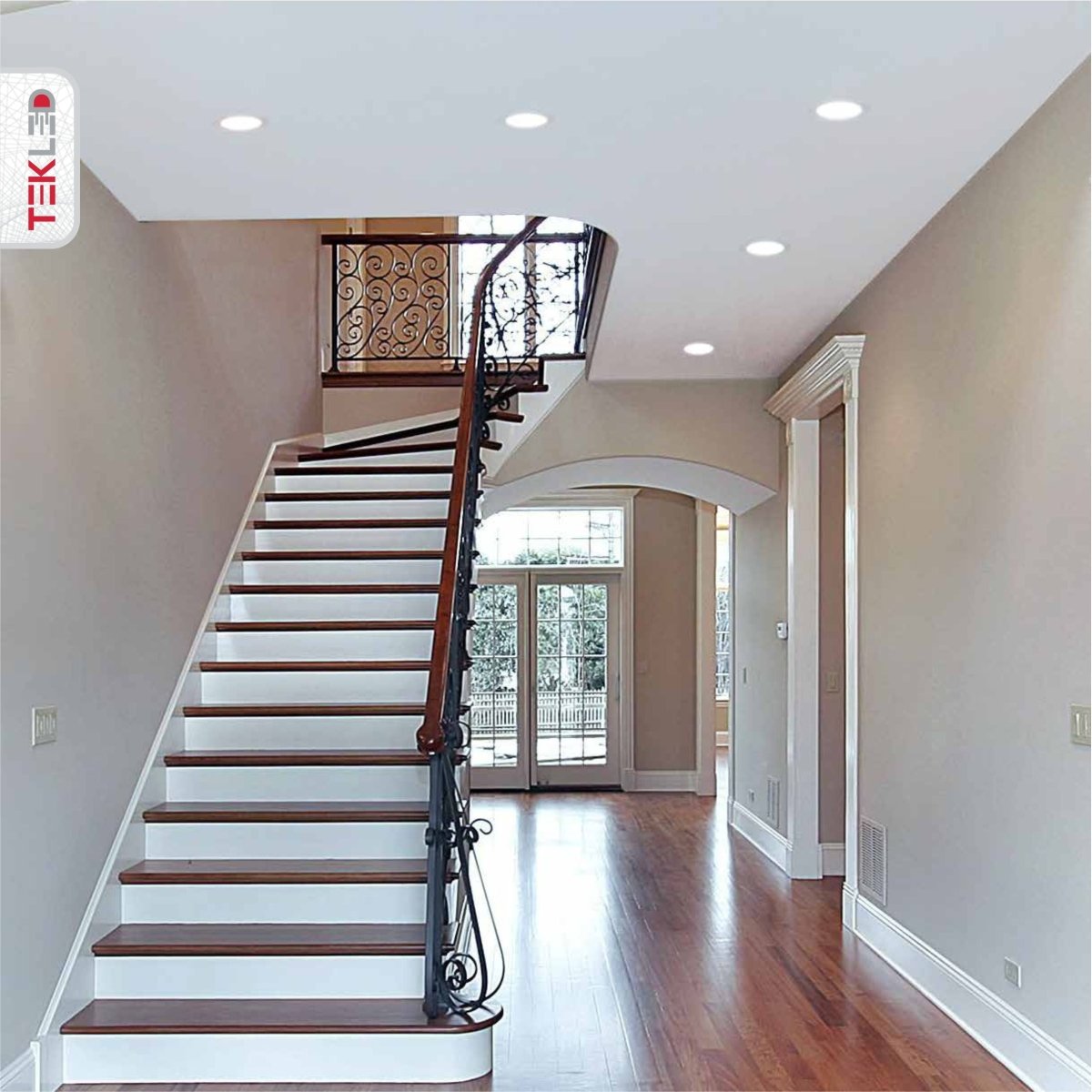

- Hallways: Provides a warm, welcoming glow
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | Downlight LED Round Slim Panel Light 12W Warm White Cool White Cool Daylight D170mm |
| Product Code | 165-03608 | 165-03609 | 165-03610 |
| Power | 12W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | SMD 2835 LED |
| Led Quantity | 5P12S 60 PCS |
| Bulbs | Integrated LED, no need additional bulb |

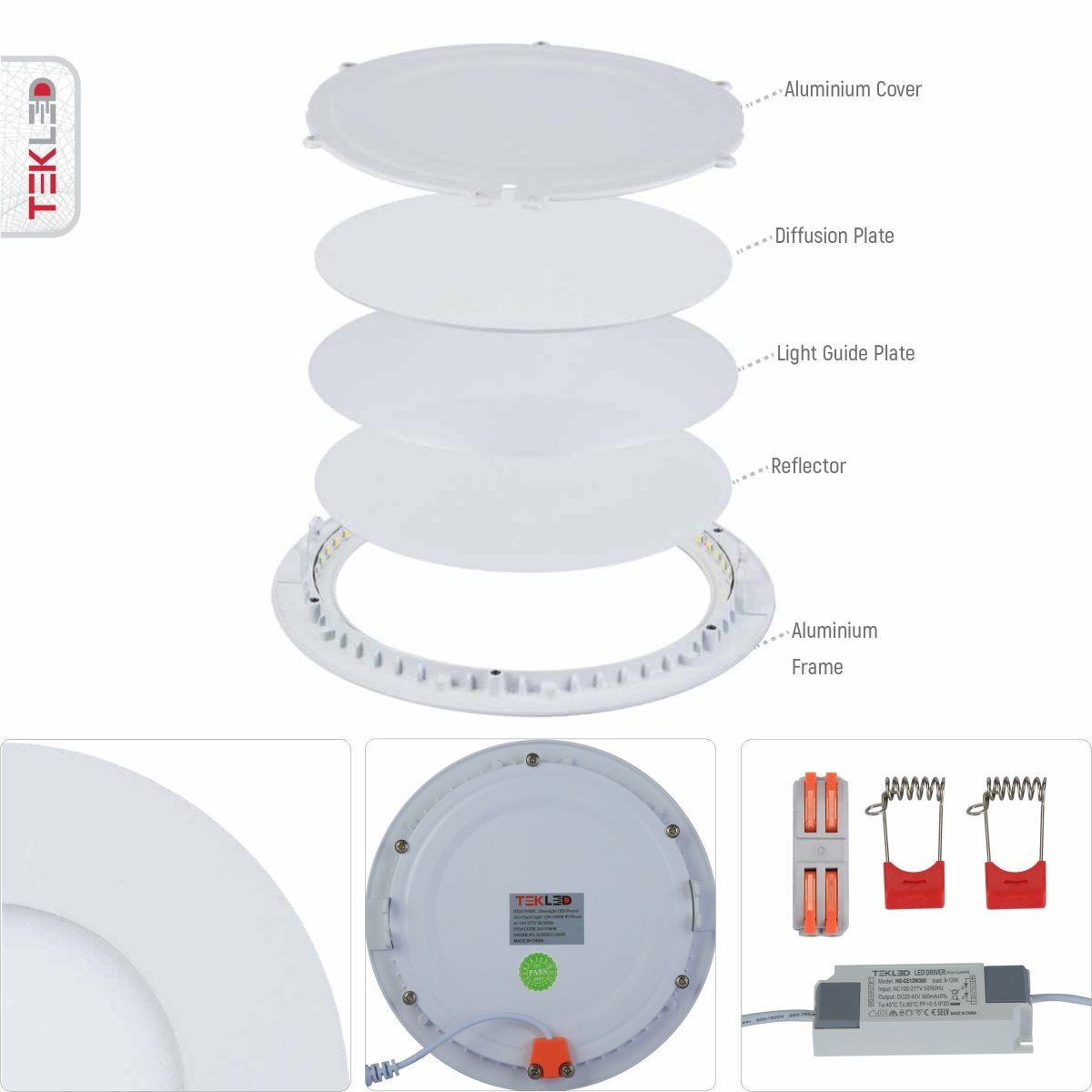

| Lit Type | Edge Lit |
| Lumen | 1100lm |
| Luminous Efficacy | 90lm/W |
| Lux | 36Lux @2m | 37Lux @2m |
| CRI | CRI>80 |
| CCT (Kelvin) Light Colour | 3000K Warm White | 4000K Cool White | 5700K Cool Daylight |
| Flickering | Flicker-free |
| IP Class | IP20 |

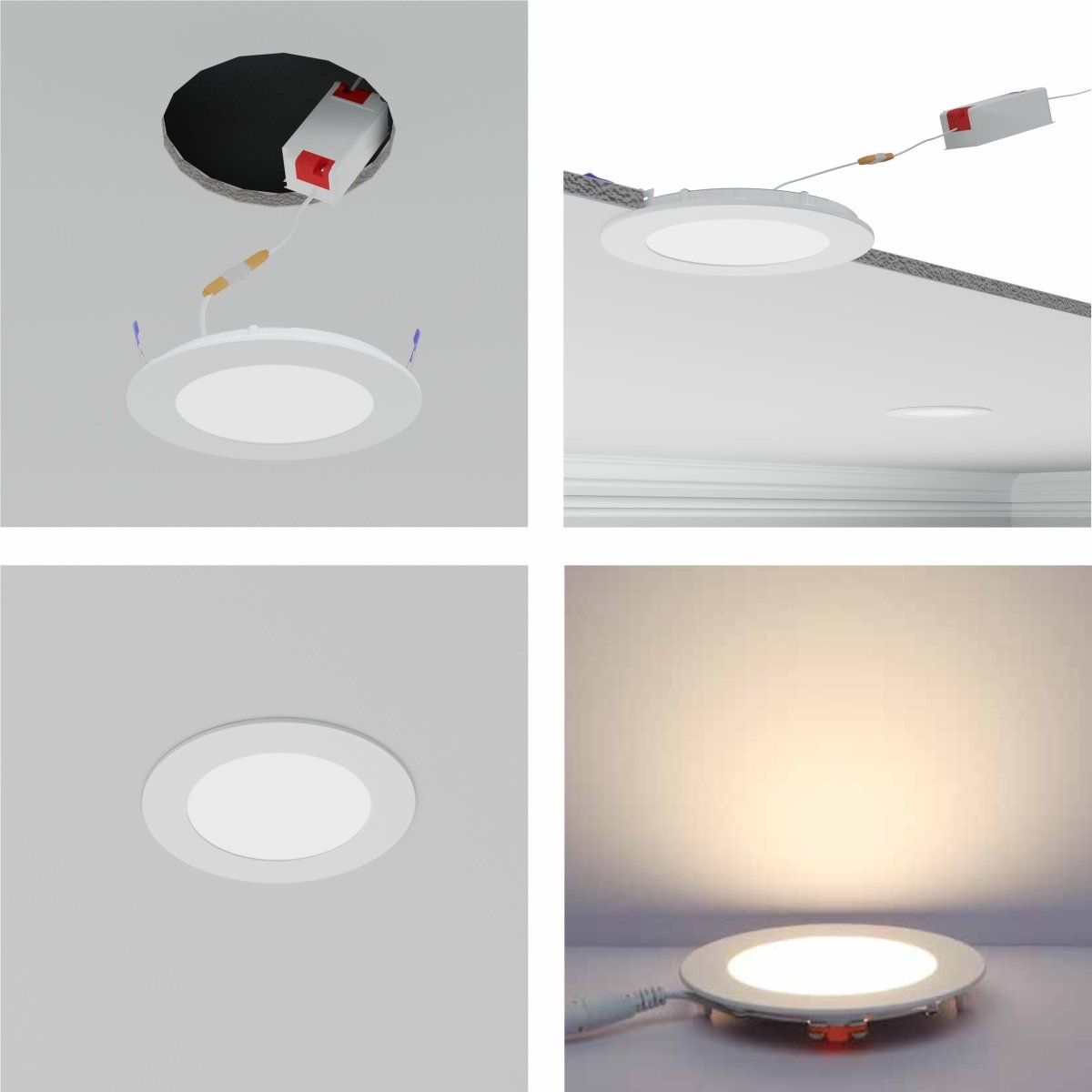

| Mount Type | Recessed Mount |
| Product Dimensions (LxWxH) (DxH) | D170x17mm |
| Cutout Size | D150mm |
| Power Cord Length | 150mm |
| Made Of Materials | Aluminium, Steel, Polystyrene |
| Product Colour | White |
| Paint Type | Spray Painted |
| Diffuser Material | PS (Polystyrene) |
| Diffuser Type | Opal |
| Driver Type | Constant Current Driver |
| Driver Power | 12W |
| Driver Input Voltage | 100-277V AC 50/60Hz |
| Driver Output Voltage | 22-42V DC |
| Driver Output Current | 300mA |
| Surge Protection Level | 2kV |
| Power Factor | pf>0.5 |
| Control | On/Off |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | F |
| Energy Rating Range | A-G |
| Warranty | 2 year |
| Life Span | 30000h |
| Net Weight | 220g |
| Gross Weight | 260g |
| Box Dimension (LxWxH) | 17.5x2.5x20.5cm |
| Box Content | 1 pc Light Fixture, User Manual, 2 pcs Springs, 1 pc Terminal |
| Certifications | UKCA, CE, RoHS |
